Cat C32 ACERT High Performance Marine Propulsion Engine (Tier 3 Rec)

C32 ACERT propulsion engine ratings of 1925 mhp (1900 bhp) 1417 bkW, 1825 mhp (1800 bhp) 1342 bkW, and 1622 mhp (1600 bhp) 1193 bkW are available with heat exchanger cooling. These ratings are compliant for U.S. EPA Tier 3 Recreational, EU Stage IIIA, and IMO II. The 1600 and 1800 bhp ratings are also meet US EPA Tier 3 Commercial Standards. The engine configuration includes an air cleaner and CCV system as well as jacket water aftercooling. Additional features include a “plug-in PTO”, an MECP I control panel, and hybrid fuel lines. The MECP I panel has a monochrome display for engine parameters, external outputs for customer installed visible and audible alarms, Start/Stop buttons, and an Off/Local/Remote switch.

Key Features & Benefits

  • Electronically Governed and Controlled (ADEM IV ECM)
  • Gear-drive Jacket Water Pump and Sea Water Pump for Enhanced Reliability
  • MCS Certifications Available
  • Titanium Plate Heat Exchanger
  • LH and RH Service side options available
Читайте также:  Ооо морские технологии директор
Engine
Speed Range 2300 rpm
Emissions IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II
Aspiration Twin Turbocharged-aftercooled
Bore 145 mm (5.71 in)
Stroke 162 mm (6.38 in)
Displacement 32.1 l (1959 inu00b3)
Rotation from Flywheel End Counterclockwise
Configuration Vee 12, 4-Stroke Cycle diesel
Dimensions & Weights
Length 2106 mm (82.9 in)
Width 1482 mm (58.3 in)
Height 1445 mm (56.9 in)
Dry Weight 3075 kg (6780 lb)

Standard Equipment

  • STANDARD EQUIPMENT
    • ADEM IV Electronic Control Module
    • Air Cleaner / Fumes Disposal
    • Electronic Diagnostics and Fault Logging
    • Engine and Transmission Monitoring
    • Sea Water Aftercooler
    • Titanium Plate Heat Exchanger with Expansion Tank
    • Gear-driven JW and SW pumps
    • Water-cooled Exhaust Manifolds and Turbochargers
    • MEUI Fuel System
    • Fuel Priming and Transfer Pump
    • 250-hr Oil Pan (Shallow Sump)
    • RH or LH Service Side Options

    Optional Equipment

    • OPTIONAL ATTACHMENTS
      • 120V or 240V Jacket Water Heater
      • SAE A or B PTO (LH or RH rear)
      • 75A or 105A Alternator
      • Spray Shielding

      Источник

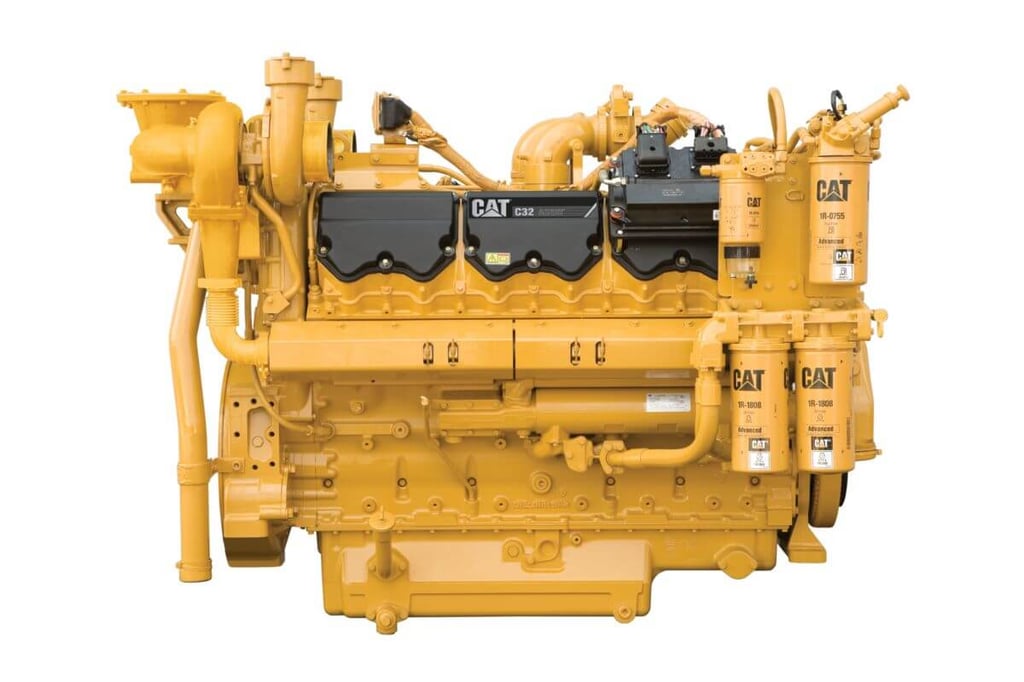

      Cat C32 ACERT™

      C833634

      Cat C32 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C32 ACERT engines to deliver excellent performance with low operating costs and emissions.This is an ideal engine for land mechanical drilling applications such as mud pump drives.Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty.Cat C32 ACERT Diesel Engine. Ratings: 597-1119 bkW (800-1500 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent emission standards.

      Specifications

      Engine Specifications
      Minimum Rating 800 BHP
      Maximum Rating 1500 BHP
      Emissions U.S. EPA Non-road Tier 2
      Rated Speed 2100 r/min
      Bore 5.7 in
      Stroke 6.4 in
      Displacement 1953 in³
      Aspiration Turbocharged-Aftercooled
      Governor and Protection ADEM A3
      Engine Weight — Net Dry 5040 lb
      Oil Change Interval 250
      Rotation from Flywheel End Counterclockwise
      Flywheel and Flywheel Housing SAE No. 0 or SAE No. 1
      Flywheel Teeth 136 (SAE 0), 113 (SAE 1)
      Capacity for Liquids
      Dimensions

      Источник

      Cat C32 ACERT Marine Propulsion Engine (1800, 1900 bhp)
      2 Pages

      Cat C32 ACERT Marine Propulsion Engine (1800, 1900 bhp)

      standard ENGINE equipment • Air cleaner/fumes disposal system • Electronic governor MARINE PROPULSION engine • A4 Electronic Control Unit • Electronic diagnostics and fault logging • Engine and transmission monitoring • Sea water aftercooler • Titanium plate heat exchanger with expansion tank • Gear-driven jacket water and sea water pumps • Watercooled exhaust manifold and turbocharger • MEUI fuel system • Fuel priming and transfer pump • Shallow sump oil pan • Oil filter, dipstick, and oil filler (RH or LH service) • Crankcase breather • Adjustable front support Image shown may not reflect actual engine DIMENSIONS Front Right Side • EPA Tier 3 Recreational/IMO II compliant • 32.16 L displacement • 2300 rpm rated engine speed • 145 mm (5.71 in) bore x 162 mm (6.38 in) stroke • Turbocharged and aftercooled aspiration • Electronically governed • Heat exchanger cooled • Refill capacity – ooling system: 79 L (20.9 gal) C – Lube oil system: 85.2 L (22.5 gal) • 4V electronic protection system 2 • AE No. 0 flywheel and flywheel housing, S 136 flywheel teeth • ounterclockwise rotation from flywheel end C • 250-hour oil change interval • Caterpillar Diesel Engine Oil 10W30 or 15W40 Note: Do not use these dimensions for installation design. See general dimension drawings for detail.

      Cat C32 ACERT Marine Propulsion Engine (1800, 1900 bhp) - 2

      MARINE PROPULSION engine MARINE ENGINE PERFORMANCE Prop Demand Maximum Power BSFC lb/hp-hr Torque lb-ft Torque lb-ft Prop Demand RATING DEFINITIONS AND CONDITIONS E Rating (High Performance) Typical applications: For vessels operating at rated load and rated speed up to 8% of the time, or 1/2 hour out of 6, (up to 30% load factor). Typical applications could include but are not limited to vessels such as pleasure craft, harbor patrol boats, harbor master boats, some fishing or patrol boats. Typical operation ranges from 250 to 1000 hours per year. CAT, CATERPILLAR, their respective logos.

      Источник

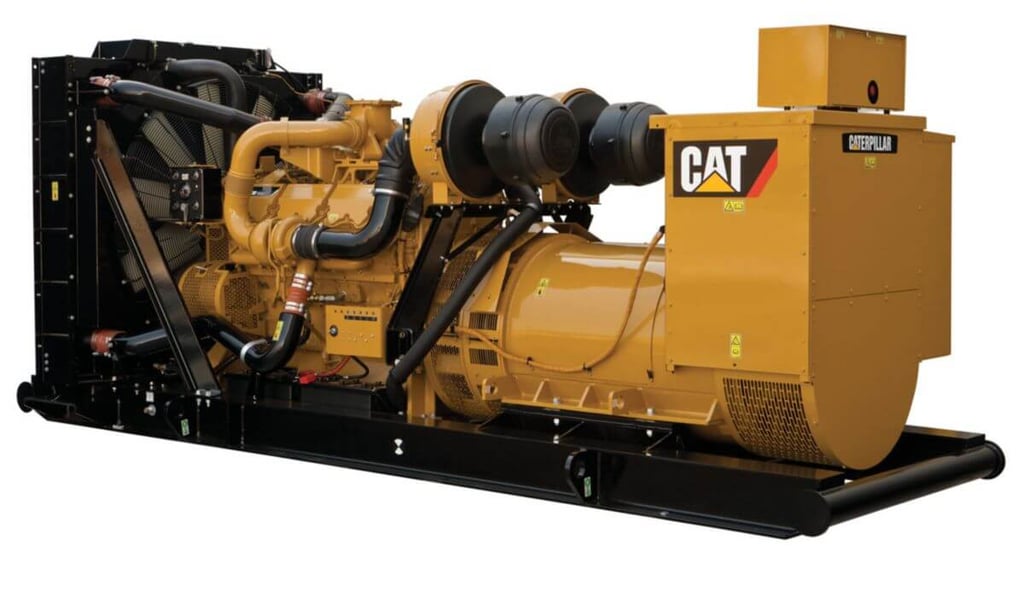

      Cat C32 ACERT Tier 2


      Producing oil and gas is a complex task that requires equipped designed specifically for the oilfield. Cat C-Series oilfield diesel generator sets offer a rugged design capable of withstanding harsh conditions in the oilfield. Decades of experience in engine manufacturing combined with the latest electronics deliver the highest performance, safe operation, low emissions, and simplified operator interface. Cat generator sets are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT oilfield diesel generator set. Ratings: 800 — 910 ekW (1000 — 1300 kVA) @ 50 and 60 Hz (1500 and 1800 rpm) meet U.S. EPA Tier 2 equivalent, EU Stage II equivalent emission standards.

      Specifications

      Engine Specifications
      Maximum Rating 800 ekW (1000 kVA)
      Minimum Rating 910 ekW (1300 kVA)
      Emissions/Fuel Strategy U.S. EPA Tier 2
      Aspiration Turbocharged-Aftercooled
      Manifold Type Dry
      Bore 5.7 in
      Stroke 6.4 in
      Displacement 1959 in³
      Engine Control and Protection ADEM A4
      Generator Set Control EMCP 3.1
      Generator SR4B
      Fuel System MEUI
      Frequency — Speed 50/60 Hz (1500/1800 rpm)
      Capacity for Liquids
      Dimensions
